Azimuth

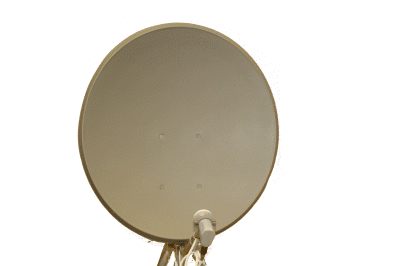

Azimuth is the turning of your satellite dish East and West or Left & Right.  This is the same as your compass reading.  Make sure when you look on your compass for the proper degree, that your compass is away from your satellite dish.  Remember, metal can throw off the reading on your compass so be very care full.

Elevation

Elevation is how high up the signal is coming from.  You can usually measure your elevation based on the degree markings on the back bracket of your satellite dish antenna.  Make sure you don't tighten the bolts too much to leave room for play in case you need to fine tune your antenna with your signal meter.  Once you fine tune to the highest possible signal, you can tighten the elevation bolts.

Polarization / Skew

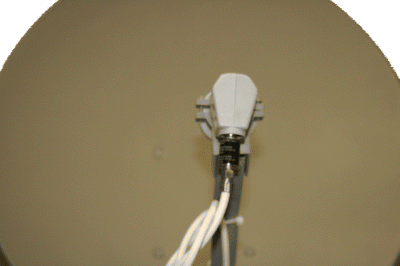

Skew or Polarity is how much you turn your LNBF.  Standing in front of the satellite dish, looking at the dish, if you have a positive Skew angle you want to turn your LNBF counter-clockwise.  If you have a negative skew angle, you  want to turn your LNBF clockwise.  Usually, in the East coast USA you have a positive skew and in West coast USA you have a negative skew.
